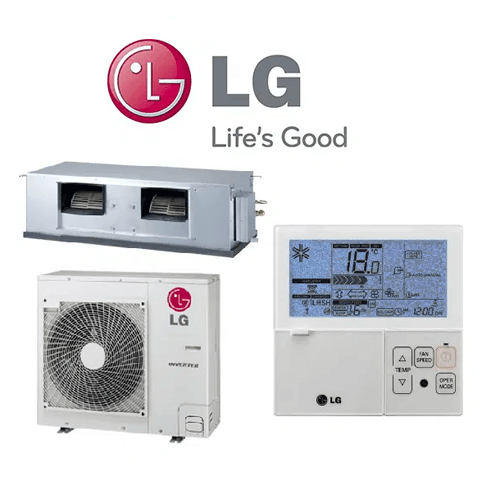

LG B42AWY-7G6 12.50 kW High Static Ducted System 1 Phase | Backlit Controller

10.5 kW Cooling 13.0 kW Heating Includes standard wall controller PREMTB001
Shop with Confidence
Brand new Australian Stock No Factory Seconds Full Australian Manufacturer’s Warranty Secure Online Payments
Description
8.80 kW Cooling 9.20 kW Heating Wi-Fi & 8 Zone Compatible
Specifications
SYSTEM
B30AWY-7G6
INDOOR
B30AWYN7G6
OUTDOOR
B30AWYU4G6
Capacity
Cooling
Min / Rated / Max
kW
2.5 / 8.8 / 9.6
Heating
Min / Rated / Max
kW
2.7 / 9.4 / 11.1
Power Input
Cooling
Rated
kW
2.58
Heating
Rated
kW
2.32
Running Current
Cooling / Heating
Rated
A
11.4 / 10.3
Power Supply
V / À / Hz
220 240 / 1 / 50
E.E.R.
3.41
C.O.P.
4.05
Airflow Rate
High / Medium / Low
L / s
533 / 433 / 333
Sound Pressure
Cooling
High / Medium / Low
dBA
41 / 40 / 39
Heating
High / Medium / Low
dBA
_ / /
Sound Power
Cooling
Max
dBA
_
Dehumidification Rate
L / h
_
Dimensions
Indoor
W x H x D
mm
1,320 x 400 x 534
Outdoor
mm
950 x 834 x 330
Weight
Indoor
kg
48.0
Outdoor
kg
58.5
Supply Air Spigot
W x H
mm
840 x 287
Return Air Spigot
W x H
mm
1,172 x 317
Compressor
Type
Inverter Twin Rotary
Sound Pressure
Cooling
Rated
dBA
51
Heating
Rated
dBA
52
Sound Power
Cooling
Max
dBA
64
Refrigerant
Type
R410A
Precharged Length
g
10
Operation Range (Outdoor)
Cooling
Min Max
C DB
-15 to 48
Heating
Min Max
C WB
-18 to 18
Circuit Breaker
A
25
Piping Length Total
Max
m
30
Piping Elevation Difference
IDU-ODU
Max
m
30
Piping Connection
Liquid
mm
À9.52
Gas
mm
À15.88
Drain
O.D. / I.D.
mm
À32.0 / 25.0
