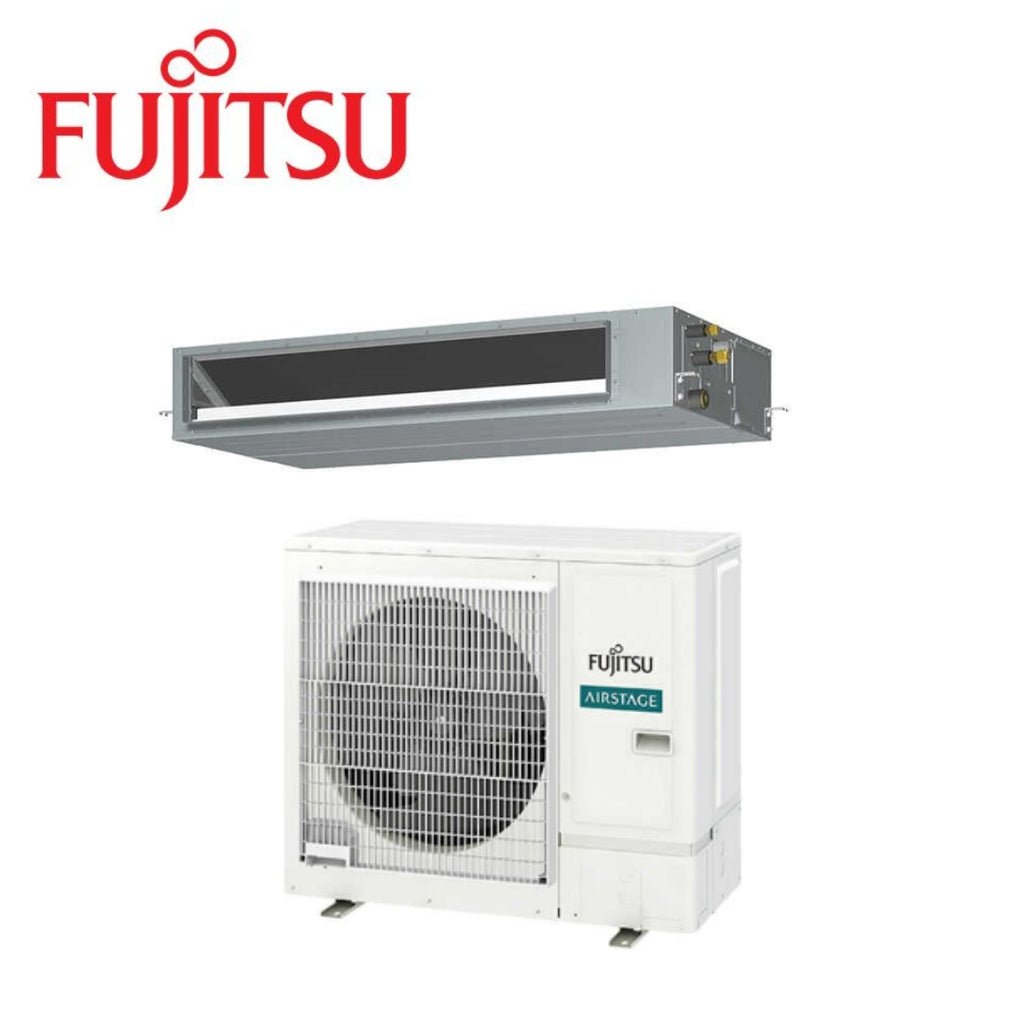

FUJITSU SET-ARTH36KMTAP 10kW Inverter Ducted System Mid Static Slimline 1 Phase | R32
Experience the ultimate in cooling comfort with our premium selection of wholesale air conditioners. All units come with a full Australian Manufacturer’s Warranty for your peace of mind. Enjoy brand new, top-of-the-line air conditioners sourced directly from Australian stock – never a factory second in sight!
Shop with Confidence
Brand new Australian StockNo Factory SecondsFull Australian Manufacturer’s WarrantySecure Online Payments
Description
10.0kW Cooling | 11.2kW Heating
Blue Fin Heat Exchanger | R32
Specification
Indoor unit
ARTH36KMTAP
Outdoor unit
AOTH36KBTA
Operation Type
Reverse Cycle
Power Source V/Ph/Hz
240 / 1 / 50
Cooling Capacity kW (Rated (Min – Max))
10.00 (2.8 – 11.4)
Heating Capacity kW (Rated (Min – Max))
11.20 (2.7 – 14)
Input Power Cooling kW (Rated (Max))
3.23 (4.3)
Input Power Heating kW (Rated (Max))
3.3 (4.5)
EER Cooling kW/kW
3.1914
COP Heating kW/kW
3.7299
Star Rating Cooling (0-10) (Hot / Average / Cold)
2.5 / 2.5 / 2.5
Star Rating Heating (0-10) (Hot / Average / Cold)
3 / 2 / 1.5
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold)
4.338 / 4.141 / 4.359
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold)
4.568 / 3.815 / 3.201
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold)
4.635 / 4.781 / 5.14
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold)
4.583 / 4.139 / 3.467
Running Current amps (Cooling / Heating)
13.6 / 13.9
Moisture Removal l/hr
2.9
Indoor Sound Pressure Cooling dBA (High / Quiet)
38 / 27
Indoor Sound Pressure Heating dBA (High / Quiet)
38 / 27
Outdoor Sound Pressure dBA (Cooling / Heating)
53 / 53
Outdoor Sound Power dBA
70
Static Pressure Range PA (Min to Max)
50 to 150
Air Circulation (Indoor – High Fan) Cooling l/sec
575
Air Circulation (Indoor – High Fan) Heating l/sec
575
Indoor Unit Dimensions mm (Height x Width x Depth)
240 x 1400 x 700
Indoor Unit Weight kg
42.00
Outdoor Unit Dimensions mm (Height x Width x Depth)
788 x 940 x 320
Outdoor Unit Weight kg
52.00
Piping Connects mm Ø (Liquid / Gas)
9.52 / 15.88
Pipe Length m (Max (Precharged))
50 (30)
Max Height Difference m
30
Operation Range Cooling °CDB (Min to Max)
-10 to 50
Operation Range Heating °CDB (Min to Max)
-15 to 24
Refrigerant Type
R32
Refrigerant Amount g
1,900
