DAIKIN XL 8.0kW Reverse Cycle Inverter Split System FTXV80WMA

Experience the ultimate in cooling comfort with our premium selection of wholesale air conditioners. All units come with a full Australian Manufacturer’s Warranty for your peace of mind. Enjoy brand new, top-of-the-line air conditioners sourced directly from Australian stock – never a factory second in sight!
Description

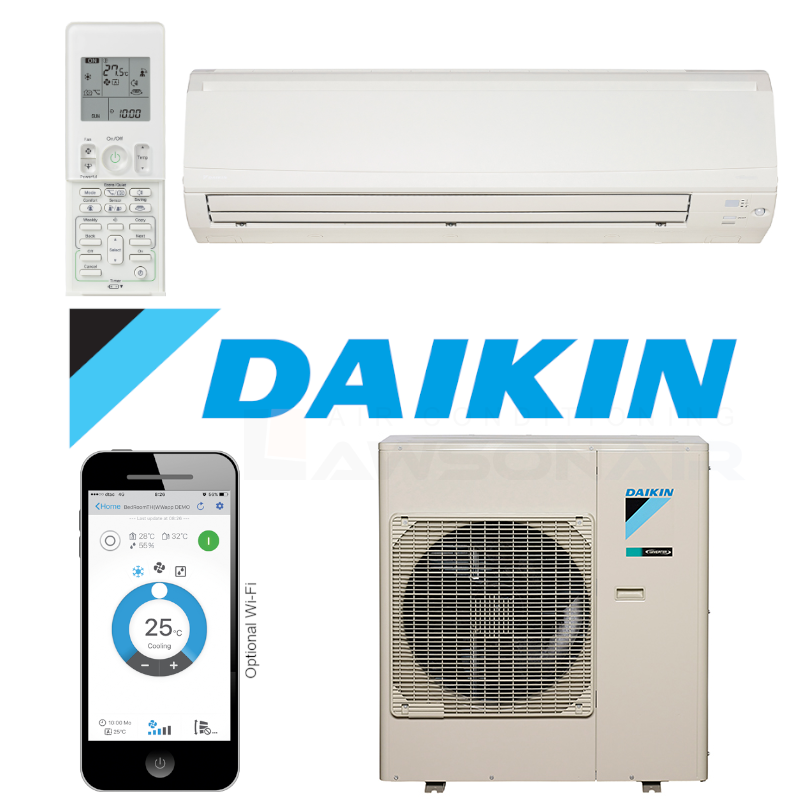

8.0kW Cooling | 9.0kW HeatingDAIKIN XL FTXV80W 8.0kW Reverse Cycle Inverter Split System Air ConditionerIncludes:Indoor unit  FTXV80WVMAOutdoor unit RXV80WVMA Wireless RemotePowerful airflow delivery, large capacity model designed for large open living.
Shop with Confidence
Brand new Australian StockNo Factory SecondsFull Australian Manufacturer’s WarrantyAuthorised Genuine DealerSecure Online Payments
Specifications
Model
Indoor Unit
FTXV80WVMA
Outdoor Unit
RXV80WVMA
Cooling
Heating
Capacity (Rated)(Min. — Max.) / Half / Low Temperature
kW
8.000 (2.000 – 10.500) / 4.000 / —
9.000 (1.900 – 11.600) / 4.500 / 8.500
Btu/h
27,300 (6,800 – 35,800) / 13,600 /—
30,700 (6,500 – 39,600) / 15,400 / 29,000
kcal/h
6,880 (1,720 – 9,030) / 3,440 / —
7,740 (1,630 – 9,980) / 3,870 / 7,310
Moisture Removal
L/h
5.2
—
Running Current (Rated)
A
10.3 – 9.8 – 9.4 / 10.3 – 9.8
13.0 – 12.5- 11.9 / 13.0 – 12.5
Power Consumption (Rated) (Min. — Max.)/ Half / Low Temperature
w
2,170 (400 – 3,670) / 780 / —
2,750 (410 – 4,130) / 960 / 3,180
Power Factor (Rated)
%
95.8 – 96.3 – 96.2 / 95.8 – 96.3
96.2 – 95.7 – 96.3 / 96.2 – 95.7
COP (Rated)
W/W
3.69
3.27
AEER / ACOP
3.66
3.254
Liquid (mm)
6.4
6.4
Piping Connections
Gas (mm)
15.9
15.9
Drain (mm)
16
16
Heat Insulation
Both Liquid and Gas Pipes
Both Liquid and Gas Pipes
Max. Interunit Piping Length
m
30
30
Max. Interunit Height Difference
m
20
20
Chargeless
m
10
10
Amount of Additional Charge of Refrigerant
g/m
20
20
Indoor Unit
FTXV80WVMA
Front Panel Colour (Munsell No.)
White (N9.5)
Airflow Rate
H (m3/min (cfm))
24.6 (869)
24.2 (855)
M  (m3/min (cfm))
20.5 (724)
18.3 (646)
L (m3/min (cfm))
16.5 (583)
14.0 (494)
SL (m3/min (cfm))
14.4 (508)
12.4 (438)
Type
Cross Flow Fan
Fan
Motor Output (w)
103
Speed (Steps)
5 Steps, Quiet, Auto
Air Direction Control
Right, Left, Horizontal, Downwards
Air Filter
Removable, Washable, Mildew Proof
Running Current (Rated)
A
0.75 – 0.72 -0.69/0.75- 0.72
0.72 – 0.69- 0.66/0.72 – 0.69
Power Consumption (Rated)
w
88
85
Power Factor (Rated)
%
53.3 – 53.1 -53.1 / 53.3- 53.1
53.7 – 53.6- 53.7 / 53.7 – 53.6
Temperature Control
Microcomputer Control
Dimensions (H x W x D)
mm
329 x 1,240 x 278
Packaged Dimensions (H x W x D)
mm
405 x 1,349 x 421
Weight (Mass)
kg
19
Gross Weight (Gross Mass)
kg
27
Sound Pressure Level / H/ M / L / SL
dB(A)
51 / 46/40/37
51 / 45/38/35
Sound Power Level
dB
67
67
Outdoor Unit
RXV80WVMA
Casing Colour
Ivory White
Heat Exchanger
Fin / Spec. Tube
Waffle Fin / 7 Hi-XD Tube
Compressor
Type
Hermetically Sealed Swing Type
Model
2YC71BXD
Motor Output (w)
2,400
Refrigerant Oil
Type
FW68DA
Charge (L)
0.9000
Refrigerant
Type
R-32
Charge (kg)
2.13
Airflow Rate
H (m3/min (cfm))
70.5 (2,489)
65.9 (2,327)
SL (m3/min (cfm))
60.4 (2,133)
51.3 (1,81 1)
Type
Propeller
Fan
Motor Output (w)
117
Running Current (Rated)
A
9.60 – 9.10 – 8.70/9.60 – 9.10
12.30 – 1 1.80 – 1 1.20/12.30 – 11.80
Power Consumption (Rated)
w
2,082
2,665
Power Factor (Rated)
%
98.6 – 99.5 – 99.7 /98.6 – 99.5
98.5 – 98.2 – 99.1 /98.5 – 98.2
Starting Current
A
13
Dimensions (H x W x D)
mm
990 x 940 x 320
Packaged Dimensions (H x W x D)
mm
1,114 x 1,003 x 396
Weight (Mass)
kg
77
Gross Weight (Gross Mass)
kg
87
Sound Pressure Level
H/ SL – dB(A)
54/51
55 / 51
Sound Power Level
H (dB)
66
67
Drawing No.
3D142726A
